Counting Chambers – Special Models for Quantitative Analysis

McMaster Counting Chamber, English Model (2 Fields)

Specifically designed for counting worm eggs in liquid samples or those preserved in media. With approximate dimensions of 75 × 32 mm, it features a cover glass with two 10 × 10 mm grids, each subdivided into ten rectangles. The distance between the chamber base and the cover glass is approximately 1.5 mm. The cover glass rests on three raised supports that define the analysis volume. Its main advantages are speed and low cost.

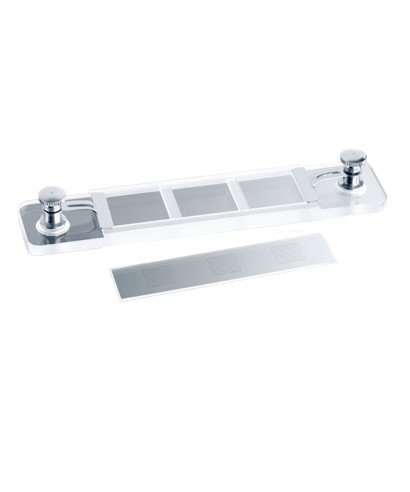

McMaster Counting Chamber, English Model (3 Fields)

Extended version of the previous model, featuring three counting areas for increased sensitivity and repeatability. Its size is 127 × 26 mm with a uniform depth of 1.5 mm. Commonly used in veterinary and parasitology laboratories, it includes a cover glass with three 10 × 10 mm grids, each divided into ten rectangles. It is equipped with clips to secure the cover glass and has ground edges and rounded corners for safer handling and easier cleaning. Replacement cover glass is available separately.

This McMaster glass chamber is an essential tool for the quantitative analysis of worm eggs. Its precise and uniform design ensures consistent and reliable results with every use. Made of chemically resistant glass, it combines durability and ergonomics for extended working sessions.

Offering flexibility in sample volume and number of counting fields, these models are easily adaptable to various protocols and technical requirements in veterinary and research laboratories.
