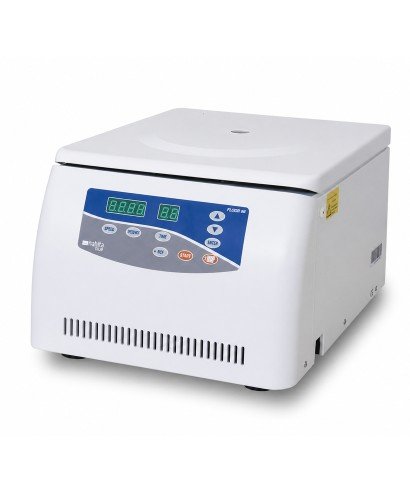

Digital angle centrifuge Fugelab-GB10

The Fugelab-GB10 digital angle centrifuge is a benchtop unit designed for the efficient separation of laboratory samples, suitable for applications in clinical analysis, biology, chemistry and research. It accommodates tubes up to 15 ml, providing a reliable solution for routine tasks such as serum, plasma or cell suspension separation.

Equipped with microprocessor-based digital control, it allows programming in both rpm and relative centrifugal force (RCF), enabling easy adaptation to different protocols. It features an LED display, user-friendly keypad, last-run memory function and Short Spin mode for quick centrifugation cycles.

The unit reaches a maximum speed of 4,000 rpm and a maximum centrifugal force of 2,250 × g, with an adjustable timer from 1 to 99 minutes. Its maintenance-free induction motor ensures stable and quiet operation, ideal for routine laboratory use.

It is supplied with a 12 × 15 ml angle rotor fitted with tube holders for 15 ml Falcon-type tubes. The unit can be expanded with two optional angle rotors: an 18 × 10 ml model and a 24 × 5 ml or 10 ml version, both designed to operate up to 4,000 rpm and 2,250 × g.

Optional adapters (not included) are available for 13 × 100 mm and 13 × 75 mm tubes, compatible with the 12 × 15 ml rotor, allowing the use of Vacutainer-type tubes depending on the required format.

The design incorporates a dual lid safety system with electromagnetic and mechanical locking, end-of-cycle acoustic signal, automatic lid opening and an emergency release system in case of power failure.

Its robust construction, with metal-based housing and lid, wide support base and stable feet, ensures smooth and low-vibration operation, delivering consistent and reproducible results.
