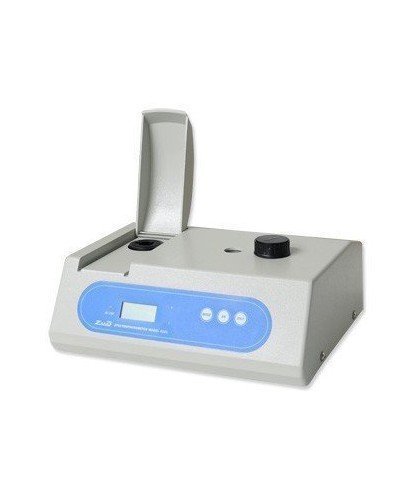

Visible range spectrophotometer, model 4101
Manual wavelength selector and digital display for reading the results obtained.
White (0% Abs) and auto zero (0% T) are easy to perform.
Compartment for one 10 mm cuvette with 10 mm light path.
Includes two glass cuvettes and black cuvette for autozero.
Absorbance and transmittance measurements in the visible range of the spectrum.
More information in the description and in the data sheet.
Visible Range Spectrophotometer, 4101
Code
Visible range spectrophotometer, model 4101
Manual wavelength selector and digital display for reading the results obtained.
White (0% Abs) and auto zero (0% T) are easy to perform.
Compartment for one 10 mm cuvette with 10 mm light path.
Includes two glass cuvettes and black cuvette for autozero.
Absorbance and transmittance measurements in the visible range of the spectrum.
More information in the description and in the data sheet.
€1,061.17 tax incl.
€877.00 Tax excl.
Spain 21% VAT; The final tax applicable may vary according to the country of destination.
Visible range spectrophotometer series 4100
Practical and simple spectrophotometer for measurements in the visible range of the spectrum.
Compact and robust design
A single button press allows selection of the measurement mode.
| Model | 4101 | 4111RS |
| Bandwidth | 8 nm | |
| Optical system | Single beam, 1,200 lines/mm grating | |
| Detector | Silicon photodiode | |
| Wavelength | 330-1.000 nm | |
| Wavelength resolution | ±1 nm | |
| Wavelength accuracy | ± 2 nm | |
| Stability | +/- 0.002 A/hr a 500 nm | |
| Wavelength selection | Manual | |
| Photometric scales | 0-100%T | 0-100%T; 0-1.999 A |
| 0-1.999 A | 0-1.999 C; 0-1.999 F | |
| Photometric accuracy | ± 2% T | |
| Scattered light | <1% a 400 nm | <0.5% a 340 nm |
| Lamp | Halogen 6 V, 10 W | |
| Cuvette holder | For 1 cuvette 10 mm | |
| Data output | - | RS 232 |
| Power supply | 110 V 60 HZ / 220 V 50 Hz via manual switch |
|
Data sheet
- Product Type
- Spectrophotometer
- Model
- Visible Light
- Optical System
- Single Beam, 1,200 lines / mm grating
- Bandwidth
- 8 nm
- Detector
- Silicon Photodiode
- Wavelength Range
- 330-1,000 nm
- Wavelength Adjustment
- Manuel
- Accuracy (±)
- ± 2 nm
- Accurancy
- ± 1 nm
- Estabilidad
- ± 0.002 A/h at 500 nm
- Photometric Scales
- 0-100 %T / 0-1.999 A
- Photometric Accuracy
- ± 2% %T
- Scattered light
- < 1 %T at 400 nm
- Lamp
- Halogen 6 V 10 W
- Cuvette Holder
- 1 cells, 10 mm light path
- Dimensions (L × W × H)
- 320×280×120 mm
- Power Supply
- 110 V AC 60 Hz / 220 V AC 50 Hz (Manual switch)
