Spectrophotometer model 4201/20 Visible
Digital wavelength selection
Wavelength range: 325-1,000 nm
Bandwidth: 4 nm
Readout: absorbance, transmittance and concentration
Compartment for 4 x 10 mm cuvettes (external changer)
Includes 4 glass cuvettes of 10 mm light path length
USB and parallel port
Included software MWave Basic
More information in the description and in the data sheet.
Visible Range Spectrophotometer, 4201/20
Code
Spectrophotometer model 4201/20 Visible
Digital wavelength selection
Wavelength range: 325-1,000 nm
Bandwidth: 4 nm
Readout: absorbance, transmittance and concentration
Compartment for 4 x 10 mm cuvettes (external changer)
Includes 4 glass cuvettes of 10 mm light path length
USB and parallel port
Included software MWave Basic
More information in the description and in the data sheet.
€1,222.10 tax incl.
€1,010.00 Tax excl.
Spain 21% VAT; The final tax applicable may vary according to the country of destination.
Spectrophotometer model 4201/20 Visible

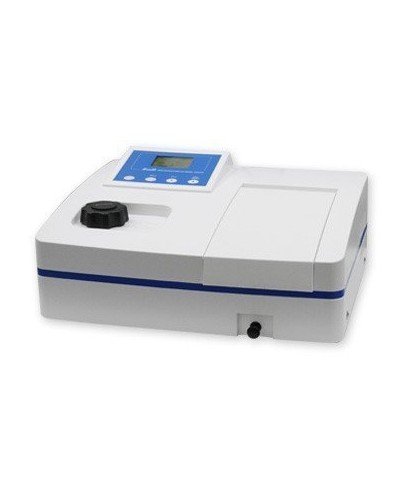

The 4201/20 visible light spectrophotometer is ideal for work in the visible range of the spectrum for routine and experimental applications in universities and teaching centres.
With manual control for wavelength adjustment and easy-to-read digital display, it is made of high quality materials that make it an accurate and reliable instrument.
Silicon photodiode detector and 1200 line/mm grating ensure high accuracy and precision.
Easy to carry out target and auto zero. Single button press allows selection of transmittance, absorbance and concentration calculation modes (coefficient and standard curve methods).
Large sample compartment to accommodate 5-100 mm path length cuvettes with suitable adapters (optional).
Manual 110V/220V power switch.
USB port and parallel port for direct data transmission to a computer or printer.
MWave Basic software included to provide full control of the spectrophotometer functions and operation from a PC.
Data sheet
- Bandwidth
- 4 nm
- Wavelength Range
- 325-1,000 nm
- Accuracy (±)
- ± 0,2 nm
- Estabilidad
- ≤ 0.004 A/h at 500 nm
- Photometric Scales
- - 0.097 / 1,999 A / 0/125 %T
- Photometric Accuracy
- ± 0.5 %T
- Scattered light
- ≤ 0.3 %T at 340 nm
- Lamp
- Tungsten
- Cuvette Holder
- 4 cells, 10 mm light path
- Repeatability
- ± 0.5 nm
- Software
- EasyUV Basic
- Dimensions (L × W × H)
- 480×360×160 mm
