The heating mantle with stirring is essential for distillation, evaporation, and more. Its robust design, featuring chrome-nickel heating elements, reaches up to 370 °C. It provides precise control and stirring up to 1400 rpm, making it ideal for various laboratory capacities.

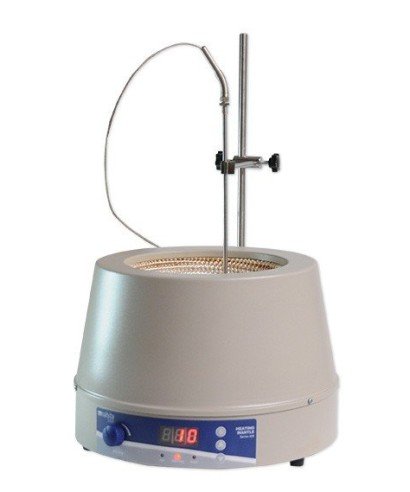

Heating Mantle with Stirring
Code
The heating mantle with stirring is essential for distillation, evaporation, and more. Its robust design, featuring chrome-nickel heating elements, reaches up to 370 °C. It provides precise control and stirring up to 1400 rpm, making it ideal for various laboratory capacities.
€208.12 tax incl.
€172.00 Tax excl.
Spain 21% VAT; The final tax applicable may vary according to the country of destination.
Nahita Heating Mantles with Stirring
Nahita heating mantles with stirring combine uniform heating with controlled magnetic agitation, making them ideal for distillation, digestion, evaporation, extraction and dissolution processes in chemical, biological and industrial laboratories. These units maintain thermal homogeneity of mixtures and ensure accuracy in assays that require simultaneous temperature and movement.
Built from durable materials and safe for prolonged use, the mantles include a support rod and stirring magnet, and offer capacities from 100 mL to 2000 mL, adapting to different working volumes. Independent regulation of temperature and speed, together with status indicator lights, provides control and reliability throughout the process.
Analogue heating mantles with stirring
Provide analogue control of temperature and stirring speed via independent knobs. Each unit includes indicator lights and reaches a maximum heating temperature of 380 °C and a maximum stirring speed of up to 1400 rpm. The robust, compact and functional design ensures homogeneous, stable heating. Supplied with a support rod and stirring magnet.
Digital heating mantles with stirring
Equipped with a painted steel housing and mineral fibre wool thermal insulation for maximum energy efficiency. Chrome–nickel alloy heating elements provide durability and uniform heat transfer. Features analogue speed control and digital temperature regulation via potentiometer with LED display, enabling precise and safe readout. They reach a maximum heating temperature of 380 °C and a maximum stirring speed of up to 14000 rpm.
Each unit is supplied with a support rod, stirring magnet and PT100 temperature probe for more accurate thermal measurement in high-precision processes.
Model comparison
| Features | Analogue | Digital |
|---|---|---|
| Control type | Independent analogue control of temperature and speed | Analogue speed and digital temperature with LED display |
| Maximum temperature | 380 °C | 380 °C |
| Maximum stirring speed | 1400 rpm | 14000 rpm |
| Heating elements | Shielded resistors | Chrome–nickel alloy |
| Thermal insulation | Mineral fibre wool | Mineral fibre wool |
| Temperature probe | Not included | PT100 probe included |
| Indicator lights | Heating and stirring status | Heating and stirring status |
| Included | Support rod and stirring magnet | Support rod, stirring magnet and PT100 probe |
Available models
| Capacity | Power (W) | Inner Ø (mm) | Depth (mm) |
|---|---|---|---|
| 100 mL | 100 W | 70 | 45 |
| 250 mL | 150 W | 90 | 55 |
| 500 mL | 250 W | 105 | 60 |
| 1000 mL | 350 W | 140 | 85 |
| 250 mL | 150 W | 90 | 55 |
| 500 mL | 250 W | 105 | 60 |
| 1000 mL | 350 W | 140 | 85 |
| 2000 mL | 450 W | 180 | 105 |
Technical summary
Nahita heating mantles with stirring unite thermal control and magnetic motion in a single unit, optimising dissolution, mixing and heating of reagents in the laboratory. The analogue series offers simplicity and reliability with manual control, while the digital series adds LED temperature display and a PT100 probe for tighter, safer regulation. Both ranges deliver thermal uniformity, stirring stability and long service life, adapting to varied experimental needs.
Data sheet
- Product Type
- Heating Mantle
- Capacity
- 2 litres
- Model
- With Stirring
- Control
- Digital
- Inner Diameter
- 105 mm Ø
- External Diameter
- 18 mm Ø
- Temperature Range
- Maximum up to 370 °C
- Speed
- 1,400 rpm
- Number Positions
- Single Stirring Position
- Dimensions (L × W × H)
- 320×230 mm
- Power Supply
- 220V 50-60Hz
- Power / Consumption
- 350 W
- Sale
- by Unit
