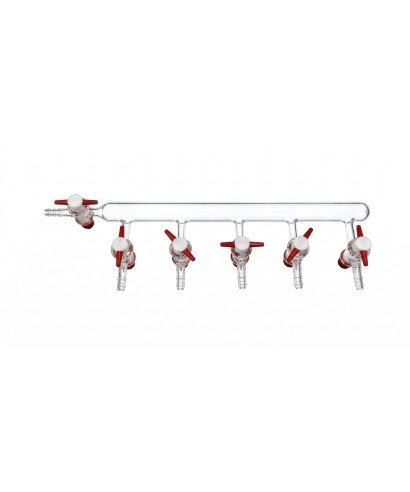

Glass Vacuum Manifold with Multiple Outlets and PTFE Valves.
Connector tube with a 22 mm diameter made of borosilicate glass 3.3, designed to provide multiple connections for vacuum distribution or gas flow in laboratory assemblies.
Available in versions with 3 or 5 outlets, each ending in a 10 mm olive and spaced 60 mm apart for organised connections. The circuit includes stopcocks that ensure a leak-tight seal and precise flow control.
The stopcocks are manufactured from PTFE (polytetrafluoroethylene or Teflon), known for excellent chemical resistance and sealing performance.
Total length: 240 mm (3 outlets) or 360 mm (5 outlets).
Glass Vacuum Manifold Multiple Place with PTFE Stopcock
Code
Glass Vacuum Manifold with Multiple Outlets and PTFE Valves.
Connector tube with a 22 mm diameter made of borosilicate glass 3.3, designed to provide multiple connections for vacuum distribution or gas flow in laboratory assemblies.
Available in versions with 3 or 5 outlets, each ending in a 10 mm olive and spaced 60 mm apart for organised connections. The circuit includes stopcocks that ensure a leak-tight seal and precise flow control.
The stopcocks are manufactured from PTFE (polytetrafluoroethylene or Teflon), known for excellent chemical resistance and sealing performance.
Total length: 240 mm (3 outlets) or 360 mm (5 outlets).
€260.48 tax incl.
€215.27 Tax excl.
Spain 21% VAT; The final tax applicable may vary according to the country of destination.
Tubos de conexión de vidrio de laboratorio
Accesorio o complemento para montaje de equipos de laboratorio
Data sheet
- Product Type
- Glass Laboratory Manifolds
- Capacity
- 3-Place
- Laboratory Stopcock
- PTFE Stopcock ( teflon)
- Length - Long
- 240 mm
