Transform your microscope into a powerful digital tool with Zuzi cameras.
Capture high-resolution images and videos directly from your microscope or stereo microscope and analyse every detail with precision.
2,1 and 8,3 megapixel models with USB 2.0 connection for easy and intuitive use: a single cable handles power, control and data transfer.
23 mm eyepiece diameter with adaptors for 30 mm and 30.5 mm eyepieces, or C-mount output for trinocular heads.
Full-featured software with measurement tools, annotations, real-time capture, editing and multi-format export.
Ideal for education, laboratories, biomedical research, geology and scientific documentation.
Sharp images, efficient analysis and broad compatibility: a professional-grade solution within everyone's reach.

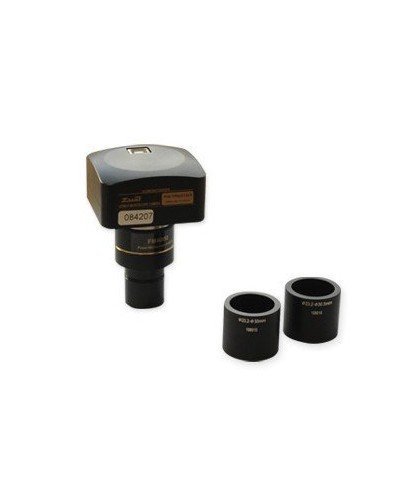

Digital Microscope Camera USB 2.0
Code
Transform your microscope into a powerful digital tool with Zuzi cameras.
Capture high-resolution images and videos directly from your microscope or stereo microscope and analyse every detail with precision.
2,1 and 8,3 megapixel models with USB 2.0 connection for easy and intuitive use: a single cable handles power, control and data transfer.
23 mm eyepiece diameter with adaptors for 30 mm and 30.5 mm eyepieces, or C-mount output for trinocular heads.
Full-featured software with measurement tools, annotations, real-time capture, editing and multi-format export.
Ideal for education, laboratories, biomedical research, geology and scientific documentation.
Sharp images, efficient analysis and broad compatibility: a professional-grade solution within everyone's reach.
€290.40 tax incl.
€240.00 Tax excl.
Spain 21% VAT; The final tax applicable may vary according to the country of destination.
Zuzi Digital Cameras for Microscopy – Turn Your Microscope or Stereomicroscope into a Digital Analysis Tool
Zuzi digital cameras are designed to transform any traditional optical microscope into a complete image capture and analysis system. Ideal for medicine, biology, geology, research, or education, they deliver high-resolution images with excellent colour fidelity.
They connect directly to a computer via a single USB 2.0 cable, providing power, data transfer and camera control in one. This simplifies usage in both professional and educational environments.
Equipped with a high-quality C2CMOS sensor and a high-precision ISP processor, these cameras ensure sharp, smooth images with accurate colour rendering. The Ultra-Fine™ colour engine enhances colour reproduction, and the integrated reduction lens allows the widest possible field of view during observation.
Their high-capacity internal memory enables low-latency data transmission, high frame rate and stability, even during continuous recording. The housing is made from CNC-machined aluminium alloy for durability and impact resistance.
They are compatible with most microscopes and stereomicroscopes thanks to the 0.5× adapter for 23 mm eyepieces and the included rings for 30 mm and 30.5 mm. They can also be directly connected to a C-mount trinocular port without additional adapters.
Compatible with multiple operating systems: Windows, Linux, macOS and Android, making them a versatile solution for various technical and academic settings.
Available Models
The range includes models with 2,1 megapixels and 8,3 megapixels, tailored to different observation and analysis requirements. Installation is quick and easy, and operation is intuitive for both professionals and students.
Included Software
- Live video and frame capture.
- Movie recording in AVI format.
- Compatible with software such as Amcap, ACDSee and Photoshop.
- Supports multiple file formats: JPG, TIFF, BMP, GIF, PSD.
- Custom settings for recording sequences and duration.
- Export results to Word, Excel, CSV or HTML.
- Add scales, annotations and text directly on the image.
- Zoom function included.
- Advanced adjustment of brightness, contrast and colour balance.
Advanced Analytical Functions
- Geometric calculations: length, perimeter, radius and area.
- Accurate angle analysis.
- Efficient cell counting.
A powerful digital tool for capturing, analysing, documenting and sharing microscopic observations with professional precision. Become an expert in visual capture and analysis with this versatile and reliable device. Ideal for both professionals and students.
| Reference | 723.9165 | 723.9168 |
|---|---|---|
| Sensor | 1/2.5" CMOS | 1/2.5" CMOS |
| Pixel size | 2.2 × 2.2 µm | 1.75 × 1.75 µm |
| Sensitivity (V/lux·s at 550 nm) | 0.53 | 0.31 |
| Maximum resolution | 2592 × 1944 2,1 Megapixels |
3264 × 2448 8,3 Megapixels |
| Frame rate at max. resolution | 5 FPS | 1.9 FPS |
| Dynamic range | 66.5 dB | 65.2 dB |
| Exposure | 0.294–2000 ms | 0.4–2000 ms |
| Interface | USB 2.0, 480 Mb/s; 2.5 m cable | |
| Power supply | Powered by computer via USB | |
| White balance | Automatic or manual | |
| Colour technique | Ultra-Fine™ Color Engine | |
| Capture/control | API: Native C/C++, C#/VB.NET, DirectShow, Twain, LabView |
|
| Recording system | Still image and video | |
| Wavelength range | 380–650 nm (with IR cut filter) | |
| Auto exposure | Automatic / Manual | |
| Eyepiece adapter | Ø 23 mm (includes 30 and 30.5 mm adapters) | |
| Operating temperature | -10 °C to 50 °C | |
| Dimensions | Cylindrical metal body, Ø 50 mm | |
Data sheet
- Product Type
- Eyepiece Video-camera, USB
- Accessory for
- Microscope & Stereo-Microscope
- Accurancy
- 8,3 Mega pixel
- Eyepieces
- For 23 mm diameter and adapters for 30 and 30.5 mm eyepieces.
- Sensor
- 1/2.5" CMOS
- Output
- USB 2.0
- Sale
- by Unit
