Smart digital tablet with 11,6″ touchscreen and integrated 16 MP camera, ideal for high-resolution microscopic observation, capture and analysis.
Features a touchscreen and multiple connectivity options: WiFi, HDMI, USB ports and SD card slot, allowing for easy integration of peripherals such as keyboard and mouse.
Equipped with C-mount connection and includes a 23 mm eyepiece adapter, making it compatible with monocular, binocular, trinocular and stereomicroscopes.
A complete solution for teaching, documentation and analysis in laboratories and technical centres.
Built-in high-sensitivity CMOS sensor and supplied with S-Eye software for image capture, video recording and precise analysis.
Additional adapters available (not included) for extended compatibility.
Tablet for Microscope
Code
Smart digital tablet with 11,6″ touchscreen and integrated 16 MP camera, ideal for high-resolution microscopic observation, capture and analysis.
Features a touchscreen and multiple connectivity options: WiFi, HDMI, USB ports and SD card slot, allowing for easy integration of peripherals such as keyboard and mouse.
Equipped with C-mount connection and includes a 23 mm eyepiece adapter, making it compatible with monocular, binocular, trinocular and stereomicroscopes.
A complete solution for teaching, documentation and analysis in laboratories and technical centres.
Built-in high-sensitivity CMOS sensor and supplied with S-Eye software for image capture, video recording and precise analysis.
Additional adapters available (not included) for extended compatibility.
€514.25 tax incl.
€425.00 Tax excl.
Spain 21% VAT; The final tax applicable may vary according to the country of destination.

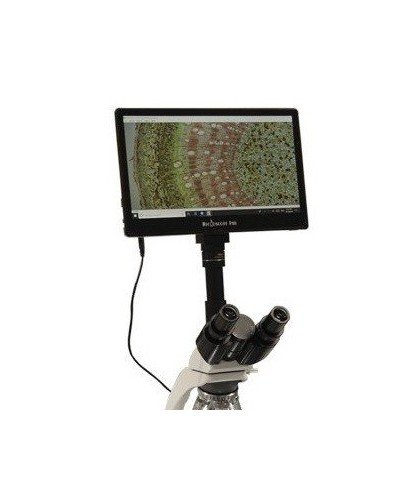

Digital Tablet with Integrated Camera for Microscopes – All-in-One Solution
Digital tablets with built-in cameras are the perfect accessory for any microscope, enabling users to view, capture, and analyse images directly from the device. Featuring an 11.6-inch touchscreen, they offer a user-friendly and intuitive experience, suitable for both educational and professional use.
Their robust and practical design includes two USB ports for connecting a keyboard and mouse, allowing for more precise control. Equipped with a high-sensitivity CMOS sensor and the powerful S-eye software, these tablets allow for high-precision image capture, video recording, and sample analysis through a clean and accessible interface.
S-eye Software Functions
- Capture photos and record videos with direct file saving.
- Measurement tools: draw lines, rectangles, circles, arcs, and angles; annotate and highlight areas of interest; export measurement results.
- Manual or automatic camera control: adjust exposure, gain, white balance, colour, and image rotation.
Compatibility and Mounting
These tablets are compatible with most microscopes, including monocular, binocular, trinocular, stereo microscopes, dissection microscopes, and even telescopes. Connection is made via a C-mount thread and a 23 mm 0.5× reduction adapter, both included.
Tablet installation is quick and easy:
- Screw the included adapter onto the tablet.
- Place the assembly directly on the microscope eyepiece.
- Once installed, the image is displayed in real time on the tablet screen.
Additional (optional) adapters are available to increase compatibility:
- 30.0 mm adapter (converts 23.2 mm to 30.0 mm)
- 30.5 mm adapter (converts 23.2 mm to 30.5 mm)
| Feature | Details |
|---|---|
| Display | 11.6-inch LCD touchscreen |
| Operating System | Windows 10 |
| Camera | 16 Megapixels |
| Sensor | MN34120, 1/2.3 inch |
| Resolution | 4032 × 3024 |
| Video | Supports 1080P format |
| Output Interface | USB 2.0, HDMI, SD card, WIFI |
| Pixel Size | 1.335 μm × 1.335 μm |
| Power Supply | DC-12V |
| Analysis Software | S-eye Software |
| RAM | 4 GB |
| Hard Drive | 60 GB |
| Processor | Intel Atom x5-Z8350 CPU @ 1.44 GHz |
