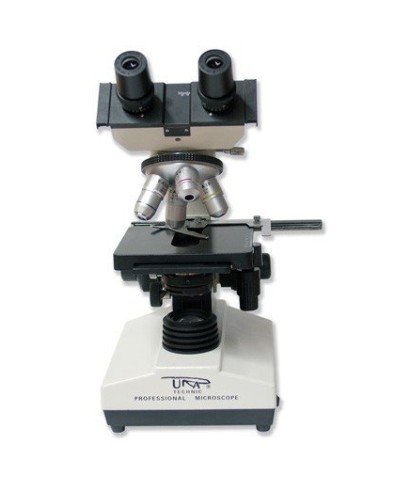

Series 100 Biological Microscope – professional, robust and designed for intensive laboratory use.
Binocular head inclined at 45° and rotatable 360°, with interpupillary adjustment and dioptre correction for comfortable observation.
Supplied with two pairs of eyepieces: WF10× and WF16×, to expand the magnification range as required.
Quadruple nosepiece with anti-fungal achromatic objectives: 4×, 10×, 40×(R) and 100×(R)(I).
Double-layer mechanical stage (130×140 mm) with dual sample holder, ideal for comparing two slides simultaneously.
Double-lens Abbe condenser with iris diaphragm and blue and green filters.
Coaxial coarse and fine focusing knobs with adjustable tension and upper limit stop.
Adjustable LED illumination for clear and even lighting during extended sessions.
Professional Microscope: 100 Series: Binocular and Trinocular
Code
Series 100 Biological Microscope – professional, robust and designed for intensive laboratory use.
Binocular head inclined at 45° and rotatable 360°, with interpupillary adjustment and dioptre correction for comfortable observation.
Supplied with two pairs of eyepieces: WF10× and WF16×, to expand the magnification range as required.
Quadruple nosepiece with anti-fungal achromatic objectives: 4×, 10×, 40×(R) and 100×(R)(I).
Double-layer mechanical stage (130×140 mm) with dual sample holder, ideal for comparing two slides simultaneously.
Double-lens Abbe condenser with iris diaphragm and blue and green filters.
Coaxial coarse and fine focusing knobs with adjustable tension and upper limit stop.
Adjustable LED illumination for clear and even lighting during extended sessions.
€635.25 tax incl.
€525.00 Tax excl.
Spain 21% VAT; The final tax applicable may vary according to the country of destination.
Professional Microscopes Series 100 – Precision for Every Need
The range of professional microscopes is designed to deliver superior optical performance and high durability in demanding environments such as laboratories, educational centres, and medical and scientific research.
These models represent a professional solution for applications in biological sample observation, histology, microbiology and advanced technical training.
They include binocular and trinocular configurations, with high-quality components such as achromatic or plan-achromatic objectives, wide-field eyepieces, quadruple or inverted quintuple nosepieces and ABBE condensers with iris diaphragm.
Illumination can be LED or halogen, with models featuring intensity control and even rechargeable battery options for enhanced autonomy.
A technical, versatile and precise solution suitable for laboratory practice, research and advanced education.
Series 107 URA Microscopes
The 107 Series is designed to offer a reliable and well-equipped solution for educational settings, technical training, and general laboratories.
- Binocular head, 360° rotatable, inclined at 45° for comfortable viewing.
- Includes two sets of eyepieces (10× / 18 mm and 16×) to expand the magnification range.
- Quadruple nosepiece and antifungal achromatic objectives with excellent performance.
- Mechanical stage with capacity to hold two slides simultaneously.
- Illumination system with green and blue filters and integrated movable filter holder.
A robust and practical choice for teaching centres and entry-level labs.
Professional Microscopes Zuzi Series P – Versatility with Portable Option
The Series P is designed for those seeking optical precision combined with ergonomic functionality and mobility.
- Siedentopf-type binocular or trinocular head, inclined at 30°, with extended interpupillary adjustment.
- High-quality achromatic objectives and inverted quadruple nosepiece.
- Double-layer mechanical stage with smooth, precise movements (132 × 142 mm).
- Adjustable LED illumination for prolonged work with visual comfort.
- Coaxial fine focusing with 0.002 mm scale.
- Optional operation with rechargeable battery (not included), ideal for mobile use or locations without direct power access.
A series designed for educational institutions, mobile labs and dynamic work environments.
| Model Reference |
107 (URA) Ref. 660.107 |
B-HC15 Ref. 660.107-P |
T-HC16 Ref. 660.117-P |
|---|---|---|---|
| Head | Binocular 45° inclined 360° rotatable No light control plate |
Binocular 30° inclined 360° rotatable |
Trinocular 30° inclined 360° rotatable |
| Eyepieces | WF 10× / 18 mm and WF 16× | W10× / 18 mm (Ø 23 mm) |
|
| Dioptre adjustment | ±2 dioptres both eyepieces |
±5 dioptres both eyepieces | |
| Interpupillary distance | 53–72 mm | 55–75 mm | |
| Nosepiece | Quadruple | Inverted quadruple | |
| Objectives | Antifungal achromatic: 4× 10× 40× (R) 100× (R)(I) |
Achromatic: 4× 10× 40× (R) 100× (R)(I) |
|
| Stage | 130 × 140 mm Double-layer mechanical With 2-slide holder |
132 × 142 mm Double-layer mechanical 75 × 50 mm movement |
|
| Condenser | Abbe N.A. 1.25 Double lens |
Abbe N.A. 1.25 | |
| Diaphragm | Iris | ||
| Filter holder | Movable | Not specified | |
| Filters | Blue and green (Ø 32 mm) |
Blue (Ø 32 mm) |
|
| Focusing | Coaxial coarse and fine focus (fine: 0.002 mm scale for 505 and P Series models) |
||
| Illumination | Halogen 6 V – 20 W With intensity control and switch Includes field mirrors |
LED 3 W / 4 V With intensity control |
|
| Power supply | 100–240 V; 50–60 Hz | ||
| Battery | – | 3× NiMH AA1 400 mAh – 1.2 V (not included) |
|
| Brand | URA | ZUZI | |
| Weight | 5 kg | 5.25 kg | |
(R) Retractable – (I) Oil immersion – (N.A.) Numerical aperture
