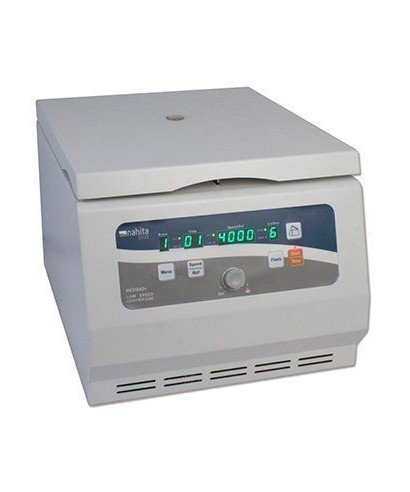

Universal bench-top high-capacity centrifuge, model 2741 Medibas+
Induction motor with 9 acceleration and braking ramps and pulse function.
The speed regulation is digital and with a maximum oscillating speed of 4000 rpm or FCR 2,790 g.
It has a timer and electric tachometer.
It has several security systems.
The equipment includes 3 rotors:
- 1 adapter with 4 tubes of 100 mL (38 mm Ø × 105 mm).
- 1 adapter for 8 × 50 mL Falcon tubes (30 mm Ø × 115 mm).
- 1 adapter for 16 × 15 mL tubes, Falcon type (17 mm Ø × 120 mm).
More information in the description and in the data sheet.
High-capacity swinging centrifuge, 2741Medibas+ model
Code
Universal bench-top high-capacity centrifuge, model 2741 Medibas+
Induction motor with 9 acceleration and braking ramps and pulse function.
The speed regulation is digital and with a maximum oscillating speed of 4000 rpm or FCR 2,790 g.
It has a timer and electric tachometer.
It has several security systems.
The equipment includes 3 rotors:
- 1 adapter with 4 tubes of 100 mL (38 mm Ø × 105 mm).
- 1 adapter for 8 × 50 mL Falcon tubes (30 mm Ø × 115 mm).
- 1 adapter for 16 × 15 mL tubes, Falcon type (17 mm Ø × 120 mm).
More information in the description and in the data sheet.
€4,598.00 tax incl.
€3,800.00 Tax excl.
Spain 21% VAT; The final tax applicable may vary according to the country of destination.
Oscillating high-capacity digital centrifuge, 2741 Medibas+
Robust, silent and vibration-free laboratory equipment with a great versatility of use due to the different adapters for the oscillating head with which it is equipped.
This centrifuge is manufactured with the most advanced technology to ensure high durability and precise control of centrifugation conditions:
The digital electronic system, designed with microprocessor, offers precise and reliable control of speed, time and FCR in this centrifuge. The maintenance-free induction motor ensures efficient and durable performance.
LED displays make it easy to control and adjust the various centrifugation parameters, including the type of adapters, centrifugation time, speed/FCR, as well as acceleration and braking ramps. The equipment includes the oscillating head and three adapters for 100 ml, 50 ml and 15 ml tubes, all designed to be autoclavable for easy cleaning.
With a sound level of less than 60 dB, the centrifuge operates quietly. In addition, an alarm warns at the end of centrifugation or if an error is detected. An air circulation system is implemented to avoid excessive temperature increases in the inner bowl.
The lid opening can be controlled electronically, and in case of power failure, it can be done manually. This integral system makes this centrifuge an efficient and safe tool for various applications in laboratory environments.
Design features - safety:
- The outer cabinet and base are made of steel. The inner bowl is made of stainless steel.
- The suction cup type feet ensure high stability of the equipment.
- The electro-mechanical locking system prevents the lid from opening during centrifugation, as well as the safety mechanism that prevents the equipment from starting up with the lid open.
- The protection system automatically stops centrifugation if the maximum allowed speed is exceeded.
- The lid with metal base and suspension mechanism incorporates a peephole device for viewing the interior.
Accessories: Table of capacities and technical parameters
| Capacity | Tube | Max. speed | Max. FCR |
| 4×100 ml | 100×40 mm | 4,000 rpm | 2.630 g |
| 8×50 ml | Falcon type | 4,000 rpm | 2.720 g |
| 16×15 ml | Falcon type | 4,000 rpm | 2.790 g |
Data sheet
- Product Type
- Centrifuge, Single Rotor
- Maximum Speed
- 4,000 rpm
- Speed
- 100-4,000 rpm (steps of 100)
- Maximum RCF
- 2,790 ×g
- Programmes
- 9 rampas de aceleración/frenado
- Rotor
- Swing-out
- Acceleration
- Ramp 0 – 9 (<20 sec from Zero to Maximum speed)
- Braking
- Ramp 0 – 9 (<30 sec from Maximum speed to zero)
- Noise level
- ≤ 60 dB
- Dimensions (L × W × H)
- 280×500×320 mm
- Weight
- 31 kg
