Digital incubator with orbital shaking for 4 microplates, designed for homogeneous mixing and thermal control in the laboratory.
Adjustable speed from 200 to 1,200 rpm and 3 mm orbital motion.
Incubation range from ambient + 3 °C to 70 °C, with accuracy and stability of ± 0.5 °C.
Digital LED display, timer, pulse mode and brushless BLDC motor.
Digital Incubator with Orbital Shaker for Microplates
Code
Digital incubator with orbital shaking for 4 microplates, designed for homogeneous mixing and thermal control in the laboratory.
Adjustable speed from 200 to 1,200 rpm and 3 mm orbital motion.
Incubation range from ambient + 3 °C to 70 °C, with accuracy and stability of ± 0.5 °C.
Digital LED display, timer, pulse mode and brushless BLDC motor.
€1,249.93 tax incl.
€1,033.00 Tax excl.
Spain 21% VAT; The final tax applicable may vary according to the country of destination.

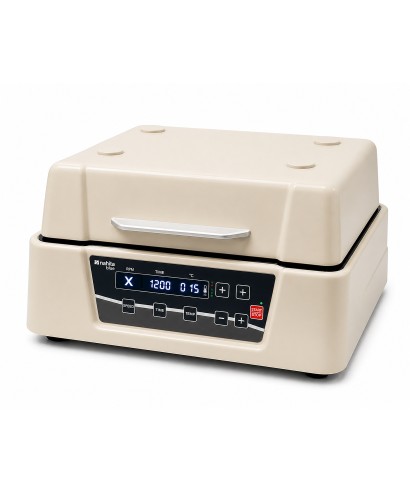

Digital Incubator with Orbital Shaking for Microplates
Equipment designed to provide gentle shaking through orbital motion. Its central rubber holding system allows up to four microplates to be securely positioned. This versatility makes it suitable for a wide range of applications such as ELISA, PCR and cell culture, both on the bench and in cold rooms or incubators, within a permissible ambient temperature range of +4 °C to +40 °C.
The digital adjustment of speed, time and temperature facilitates use in both routine protocols and processes requiring greater control. The incubation function allows temperature regulation from ambient + 3 °C up to 70 °C, integrating mixing and thermal control in a single unit.
The brushless motor ensures quiet, uniform and maintenance-free operation. Its robust and compact design enables convenient daily use in a variety of laboratory environments.
Technical Specifications
| Capacity | 4 microplates |
| Speed | 200 – 1,200 rpm |
| Movement | Orbital |
| Orbital diameter | 3 mm |
| Incubation range | Ambient + 3 °C to 70 °C |
| Temperature accuracy | ± 0.5 °C |
| Temperature stability | ± 0.5 °C |
| Permissible ambient temperature | +4 °C to +40 °C |
| Timer | 1 min – 99 h 59 min and continuous mode |
| Pulse mode | Yes, clockwise and counter-clockwise rotation |
| Display | Digital LED |
| Motor | Brushless BLDC |
| Dimensions | 267 x 361 x 155 mm |
| Weight | 8.45 kg |
| Power supply | 230 V AC ± 10 V, 50 Hz |
| Power consumption | 276 W |
| Safety fuse | 3 A |
Data sheet
- Product Type
- Incubator Shaker
- Capacity
- 4 microplacas
- Temperature Range
- 3°C a 70°C
- Speed
- 200-1200 rpm
- Stirring orbital diameter
- 3 mm Ø
- Dimensions (L × W × H)
- 365×289×152 mm
- Weight
- 500 g - 0.5 kg
- Power Supply
- 24 V
- Power / Consumption
- 276 W
