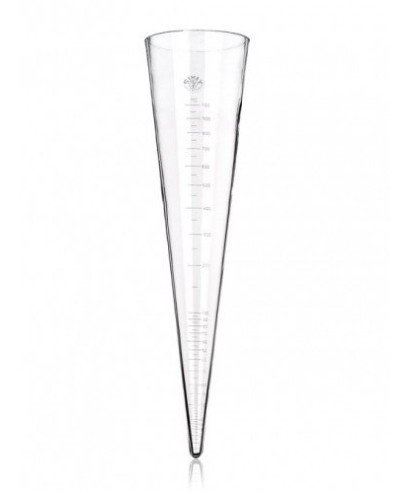

Glass measuring cone with a capacity of 1 litre, Imhoff model
Suitable for laboratory sedimentation work.
Made of borosilicate glass, the upper inner diameter is 118 mm (± 10 mm) and with a total height of 470 mm (± 10 mm).
The capacity is 1000 ml
The graduation is silk-screen printed in white: from 0 to 5 ml in 0.5 ml; from 5 to 20 ml in 1 ml; from 20 to 100 ml in 5 ml; from 100 to 1000 ml in 50 ml (Swiss type subdivision).
Glass Imhoff Cone for Sedimentation
Code
Glass measuring cone with a capacity of 1 litre, Imhoff model
Suitable for laboratory sedimentation work.
Made of borosilicate glass, the upper inner diameter is 118 mm (± 10 mm) and with a total height of 470 mm (± 10 mm).
The capacity is 1000 ml
The graduation is silk-screen printed in white: from 0 to 5 ml in 0.5 ml; from 5 to 20 ml in 1 ml; from 20 to 100 ml in 5 ml; from 100 to 1000 ml in 50 ml (Swiss type subdivision).
€141.57 tax incl.
€117.00 Tax excl.
Spain 21% VAT; The final tax applicable may vary according to the country of destination.
Imhoff Cone for Sedimentation with Closed Tip
Manufactured according to DIN 1267 in the Czech Republic (EU) - CE mark Simax.
Cone-shaped container made of transparent glass with graduation to determine the capacity of solid sediment in a liquid at rest. The cone is made of borosilicate glass 3.3 with white graduation, Swiss type subdivision.
Basic material for school, college and university laboratories. Useful for sedimentation practice.
General properties of borosilicate glass 3.3
The glass is distinguished by its very good chemical resistance to water, salt solutions, acids, bases and organic solvents. It is only attacked by hydrofluoric acid and, at high temperatures, by strong bases and phosphoric acid.
Data sheet
- Product Type
- Imhoff Cone
- Inner diameter neck
- 118 mm
- Rim Shape
- Flat Finish
- Body Shape
- Conical Shaped
- Bottom Shape
- Conical Bottom
- Height
- 480 mm
- International Standards
- DIN 1267
