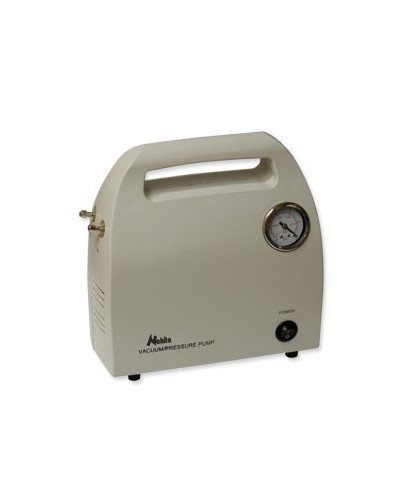

Vacuum diaphragm pump with a capacity of 10 litres/minute for laboratory filtration equipment, filtration flasks and desiccators with lid with stopcock.
Apparatus for a wide range of applications of vacuum or gas removal in laboratories.
Oil-free, no water is required to generate the vacuum.
The metal pressure gauge is analogue
Vacuum pressure: 638 mm Hg - 0.085 Mpa - 850 mbar
Pressure gauge two scales Bar 100 x kPa, inHg
Flow rate 25 l/min. - 0.6 m³/h
Power consumption 20 W
Dimensions 245x135x245mm
Weight 4 kg
Membrane Pump for Filtration Vacuum, 10 litres/minute
Code
Vacuum diaphragm pump with a capacity of 10 litres/minute for laboratory filtration equipment, filtration flasks and desiccators with lid with stopcock.
Apparatus for a wide range of applications of vacuum or gas removal in laboratories.
Oil-free, no water is required to generate the vacuum.
The metal pressure gauge is analogue
Vacuum pressure: 638 mm Hg - 0.085 Mpa - 850 mbar
Pressure gauge two scales Bar 100 x kPa, inHg
Flow rate 25 l/min. - 0.6 m³/h
Power consumption 20 W
Dimensions 245x135x245mm
Weight 4 kg
€809.49 tax incl.
€669.00 Tax excl.
Spain 21% VAT; The final tax applicable may vary according to the country of destination.
Vacuum Pump of 10 litres/minute
Simple to use and easy to maintain. Diaphragm or diaphragm pump with electric motor. Equipped with an analogue metal pressure gauge.
Wide range of applications for vacuum work or for the removal of gases in chemistry or physics laboratories.
Totally oil-free pump, 100% oil-free, does not require water and therefore does not produce any waste water.
This compressor is used to extract air and non-condensed gases to achieve a pressure space below atmospheric pressure.
The vacuum pump is used to work with the following laboratory apparatus or equipment:
- Desiccators with stopcock
- Filtration equipment
- Rotary evaporators
- Filtration flasks or Kitasate.
Data sheet
- Product Type
- Vacuum Pump
- Capacity
- 10 L/min - 0.6 m³/h
- Control
- Analog
- Maximum Pressure vacuum
- 0,08 Mpa
- Number Positions
- Individual Pump Head
- Dimensions (L × W × H)
- 215×120×235 mm
- Weight
- 4 kg
- Power Supply
- 220V 50-60Hz
- Power / Consumption
- 20 W
