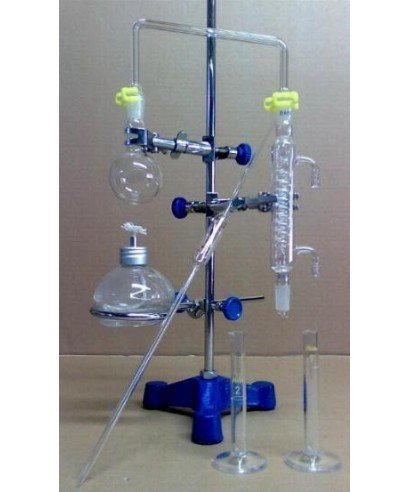

Volatile acidity apparatus on a tripod stand, with flask, coil condenser, burette and spirit lamp

Analysis Instrument for Volatile Acidity in Wine

Code

Apparatus for measuring the volatile acidity of wine in the laboratory.
Shows whether a wine is turning to vinegar, a routine check in wineries and oenology laboratories.
The wine is distilled and the distillate is titrated with a burette to calculate its volatile acidity.
The distillation parts are made of heat-resistant borosilicate glass 3.3.
Supplied complete and ready to assemble, with stand parts, spirit lamp and all the glassware.

€223.85 tax incl.
€185.00 Tax excl.
Spain 21% VAT; The final tax applicable may vary according to the country of destination.
Out-of-Stock

Acetic acid control by distillation in wineries and oenology laboratories

Volatile acidity refers to the acids in wine that evaporate easily, mainly acetic acid.

A small amount is normal, but as it rises the wine starts to smell and taste of vinegar. Testing for it detects this fault early, which is why it is checked routinely during winemaking and ageing.

This apparatus separates these acids from the rest of the wine by distillation and then quantifies them by titration. The analysis follows these steps:

  1. Remove the carbon dioxide dissolved in the wine by shaking it or applying a vacuum, as it would affect the result.
  2. Take 11 ml of sample with the pipette and pour it into the flask.
  3. Heat the flask with the spirit lamp. The volatile acids evaporate, pass through the glass bridge and condense back into liquid in the coil condenser.
  4. Collect the distillate in two fractions: first in the 5.1 ml cylinder, then in the 3.2 ml one.
  5. Transfer the second fraction to the Erlenmeyer flask and titrate it with the burette, adding the reagent little by little until the liquid changes colour. The volatile acidity is calculated from the volume used.

The distillation parts are made of heat-resistant borosilicate glass 3.3 and are connected by standard 14/23 ground glass joints held with clips. If a part breaks, it can be replaced easily.

Set components

  • Tripod base stand with 500 × 10 mm rod
  • 80 mm ring for the spirit lamp
  • 4 double bossheads
  • 3 clamps without bosshead
  • 100 ml spirit lamp
  • 120 mm coil condenser
  • 155 mm glass distillation bridge
  • Volatile acidity flask
  • 2 single-mark measuring cylinders, 5.1 ml and 3.2 ml
  • 11 ml single-mark pipette
  • 10 ml burette, class AS, with needle valve stopcock
  • 50 ml Erlenmeyer flask
  • 2 clips for 14/23 joints

Reagents not included.
