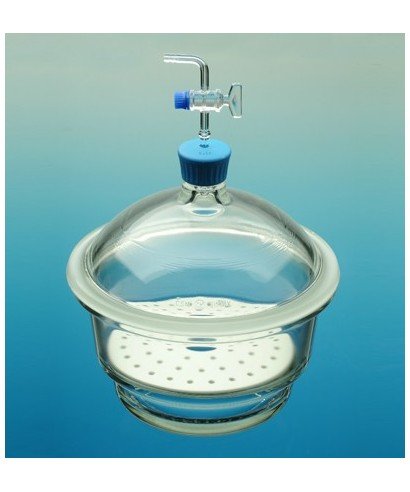

Desiccator of 150 mm nominal size, and lid with GL36 screw cap and glass stopcock. It is for drying and/or dehydration processes using the vacuum force.
Brand: SIMAX - Czech Republic
Laboratory glassware to be complemented with a vacuum system by means of a water pump or membrane pump.
The base and the lid are made of borosilicate glass with high performance and resistance to thermal shock. The lid is finished with standard GL36 thread to fit the knob with hole. The knob hole is fitted with a glass punch tap.
Supplied with a 140 mm diameter perforated porcelain plate.
For further details of dimensions and features, please refer to the technical data sheet.
150mm Desiccator, Glass Stopcock & Porcelain Plate
Code
Desiccator of 150 mm nominal size, and lid with GL36 screw cap and glass stopcock. It is for drying and/or dehydration processes using the vacuum force.
Brand: SIMAX - Czech Republic
Laboratory glassware to be complemented with a vacuum system by means of a water pump or membrane pump.
The base and the lid are made of borosilicate glass with high performance and resistance to thermal shock. The lid is finished with standard GL36 thread to fit the knob with hole. The knob hole is fitted with a glass punch tap.
Supplied with a 140 mm diameter perforated porcelain plate.
For further details of dimensions and features, please refer to the technical data sheet.
€302.50 tax incl.
€250.00 Tax excl.
Spain 21% VAT; The final tax applicable may vary according to the country of destination.
INFORMACION TECNICA
Marca: SIMAX - República Checa
Tipo de vidrio: Borosilicato 3.3
Propiedades generales del vidrio borosilicato 3.3.
El vidrio se distingue por su muy buena resistencia química frente al agua, soluciones salinas, ácidos, bases y disolventes orgánicos. Solamente es atacado por ácido fluorhídrico y, a elevadas temperaturas, por bases fuertes y ácido fosfórico.
| Composición química | ||
| SiO2 | Sílice | 80% |
| B2O3 | Boro óxido | 12,50 % |
| Al2O3 | Aluminio óxido | 2,40 % |
| Na2O | Sodio óxido | 3,80 % |
| K2O | Potasio óxido | 1 % |
| Fe2O3 | Hierro óxido | 0,30 % |
| Resistencia química | |
| Hidrolítica según DIN 12111 ISO 719 | Clase 1 |
| A los ácidos según DIN 12116 | Clase 1 |
| A las bases según DIN 52322 ISO 695 | Clase 2 |
| Propiedades físicas | |
| Coeficiente de dilatación lineal | 3,3 |
| Temperatura de transformación | 534º C |
| Temperatura superior de recocido | 550º C |
| Temperatura inferior de recocido | 494º C |
| Temperatura máxima de trabajo | 500º C |
Medidas desecadores Simax
| Desecador | Ø placa porcelana | Capacidad | Exterior borde | Interior borde |
| 150 mm | 140 mm | 1.5 litros | 214 mm | 168 mm |
| 200 mm | 190 mm | 4 litros | 273 mm | 222 mm |
| 250 mm | 240 mm | 8 litros | 334 mm | 280 mm |
| 300 mm | 290 mm | 12 litros | 395 mm | 330 mm |
Data sheet
- Product Type
- Vacuum Desiccator with Glass Stopcock
- Material
- Borosilicate Glass
- Capacity
- 1.5 litres
- Colour
- Clear
- Graduation
- Ungraduated
- Closure
- Glass Lid & Screw Plastic Knob with hole
- Diameter
- 150 mm Ø
- Nominal Diameter
- 150 mm Ø
- Inner Diameter
- 168 mm Ø
- External Diameter
- 214 mm Ø
- Plate for desiccator
- 140 mm Ø
- Plate/Disc
- Porcelain
- Sale
- by Unit
